Angivelser om vævning
Semimørklægning
Polyester
300 g/m²
0.62 mm
290 cm
295 cm
Tekniske egenskaber
4-5
Alpha-w = 0.80
Flammehæmmende
Kun krydsbehandling
Kun krydsbehandling
Oeko-Tex
Særlige farver fra 400 m
Vaskeanvisninger
-0.5%
-1%
-0.25%
Optiske koefficienter og solkoefficienter (± 5 %, DIN EN 410)
| Farve |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|

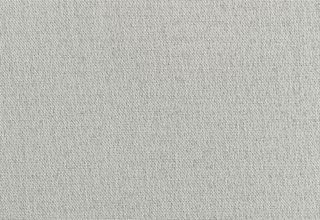

| Farve 1 | Tv(%) 0.6 | Ts(%) 1.0 | Rs(%) 59.8 | As(%) 39.2 | Tuv(%) 0.00 | Fc() 0.54 | gtot() 0.39 |

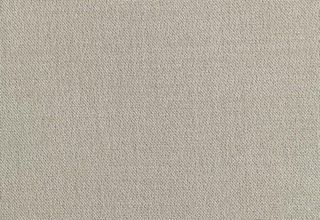

| Farve 2 | Tv(%) 0.6 | Ts(%) 1.0 | Rs(%) 59.8 | As(%) 39.2 | Tuv(%) 0.00 | Fc() 0.54 | gtot() 0.39 |
| Farve 3 | Tv(%) 0.6 | Ts(%) 1.0 | Rs(%) 59.8 | As(%) 39.2 | Tuv(%) 0.00 | Fc() 0.54 | gtot() 0.39 |

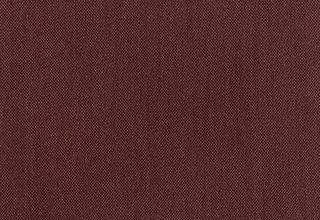

| Farve 12 | Tv(%) 0.0 | Ts(%) 0.8 | Rs(%) 44.5 | As(%) 54.7 | Tuv(%) 0.00 | Fc() 0.64 | gtot() 0.46 |

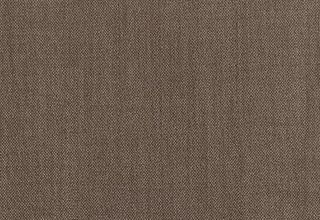

| Farve 14 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 37.1 | As(%) 62.0 | Tuv(%) 0.00 | Fc() 0.68 | gtot() 0.49 |

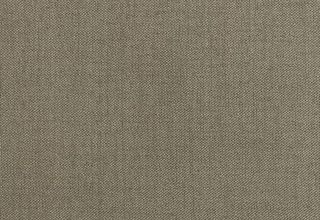

| Farve 17 | Tv(%) 0.0 | Ts(%) 0.8 | Rs(%) 44.5 | As(%) 54.7 | Tuv(%) 0.00 | Fc() 0.64 | gtot() 0.46 |

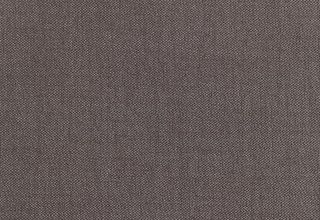

| Farve 18 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 37.1 | As(%) 62.0 | Tuv(%) 0.00 | Fc() 0.68 | gtot() 0.49 |

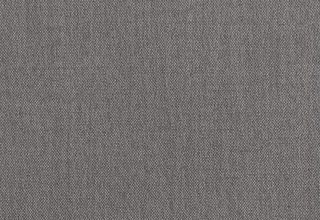

| Farve 19 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 37.1 | As(%) 62.0 | Tuv(%) 0.00 | Fc() 0.68 | gtot() 0.49 |

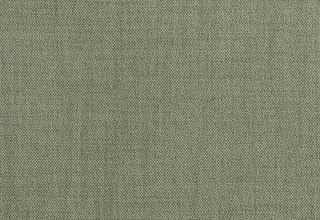

| Farve 23 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 37.1 | As(%) 62.0 | Tuv(%) 0.00 | Fc() 0.68 | gtot() 0.49 |

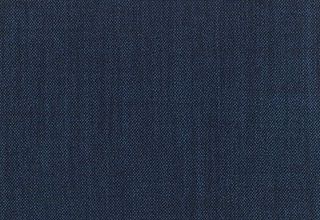

| Farve 29 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 34.0 | As(%) 65.1 | Tuv(%) 0.00 | Fc() 0.70 | gtot() 0.51 |

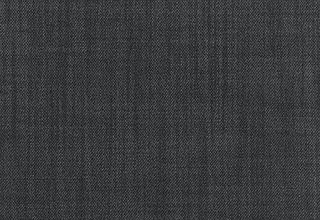

| Farve 30 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 34.0 | As(%) 65.1 | Tuv(%) 0.00 | Fc() 0.70 | gtot() 0.51 |

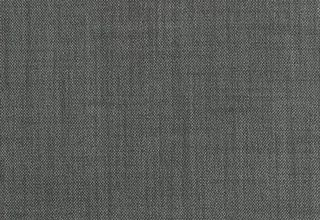

| Farve 31 | Tv(%) 0.0 | Ts(%) 0.9 | Rs(%) 37.1 | As(%) 62.0 | Tuv(%) 0.00 | Fc() 0.68 | gtot() 0.49 |

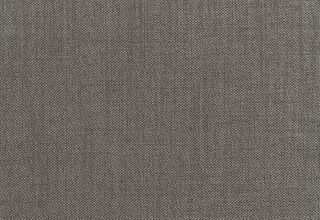

| Farve 32 | Tv(%) 0.0 | Ts(%) 0.8 | Rs(%) 44.5 | As(%) 54.7 | Tuv(%) 0.00 | Fc() 0.64 | gtot() 0.46 |

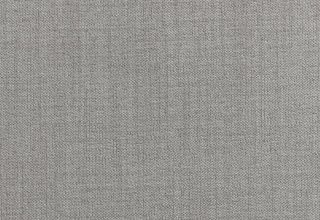

| Farve 33 | Tv(%) 0.6 | Ts(%) 1.0 | Rs(%) 59.8 | As(%) 39.2 | Tuv(%) 0.00 | Fc() 0.54 | gtot() 0.39 |
Fc + gtot: Værdi beregnet med glas: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
På forespørgsel:
M1 (NF P 92-503/5/7)
IMO
